CNC Plasma Cutting Tables
Custom tables on request

Classic Series : Complete Table, excluding Plasma cutter!

R88 000.00

Table cutting Size:
900 x 600mm
R98 000.00

Table cutting size:
1225mm x 1225mm
R112 000.00

Table cutting size:
1225mm x 2460mm
R127 000.00

Table cutting size:
1500mm x 3000mm

  • Prices subject to change without notice.
  • Important! Plasma Cutter options listed below
  • Prices as is, no VAT charges
  • Please ensure that the air line has a sufficient water trap installed
  • A 50A circuit breaker is recommended for plasma cutting

Included in the Price

☑ The Table

  • Strong Table construction made from mild steel and powder coated
  • All other sections are zink plated, with a stainless steel gantry
  • Parts are laser cut, bent and made in Port Elizabeth
  • Complete assembly by bolts and nuts no welding
  • Rack and pinion X and Y movement at +-0.05mm increments
  • Ball screw 12mm shaft Z axis with movement from 0 to 110mm
  • XYZ steppers motors NEMA23 torque 25kg/cm
  • X&Y max rapid speed of 10000mm/minute
  • Stepper motor driver included for XYZ
  • Limits on all axis
  • Switch mode power supply 36V 11amp
  • Motor cables and limit switches included

☑ Computer

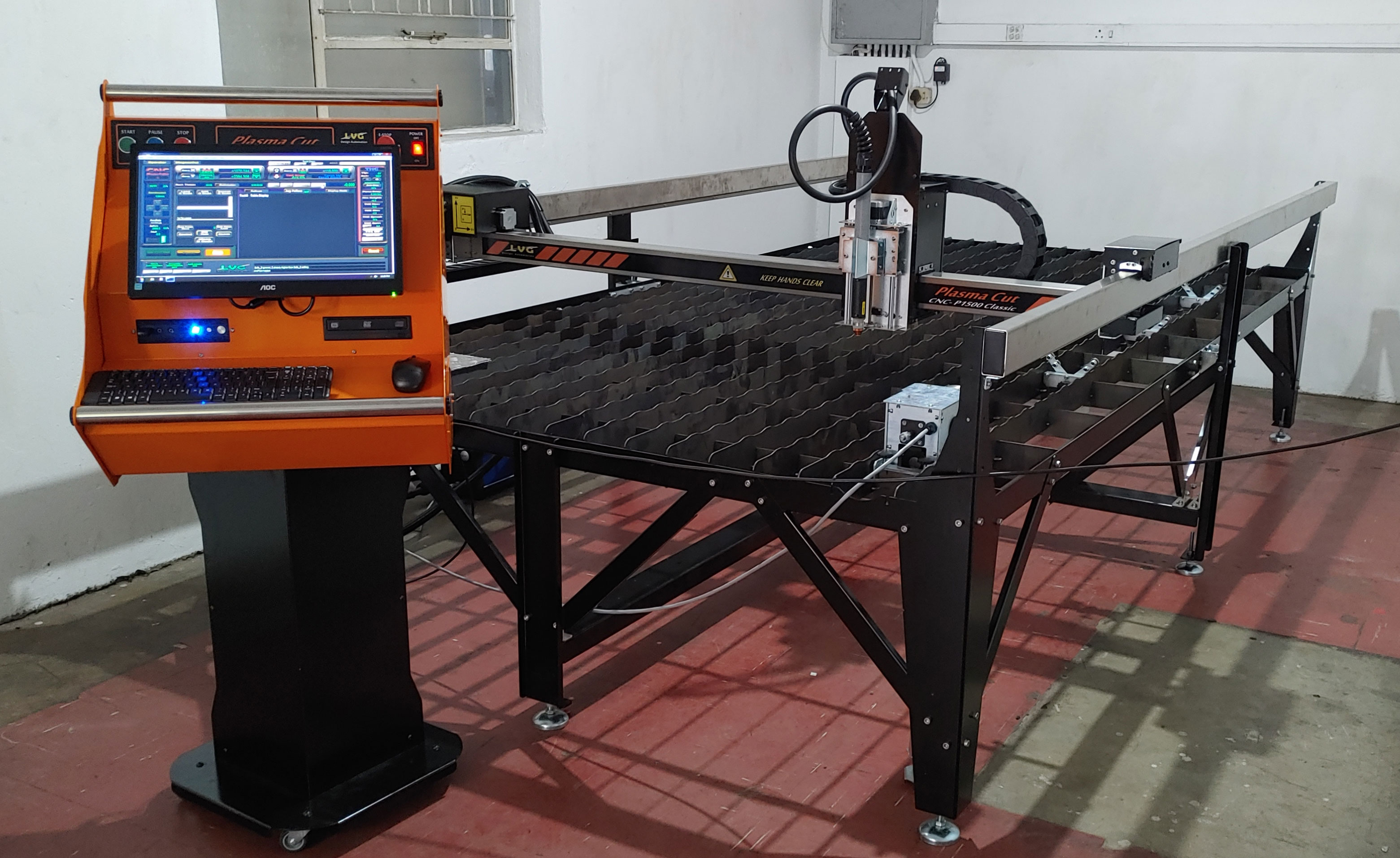

  • Computer with 18.5inch LED Screen
  • Front panel USB, Intel Dual Core CPU, with RAM and storage
  • Wireless mouse & keyboard
  • Metal shield enclosure with movable stand and external START, PAUSE, STOP and Estop

☑ Software

  • Windows 7 32bit

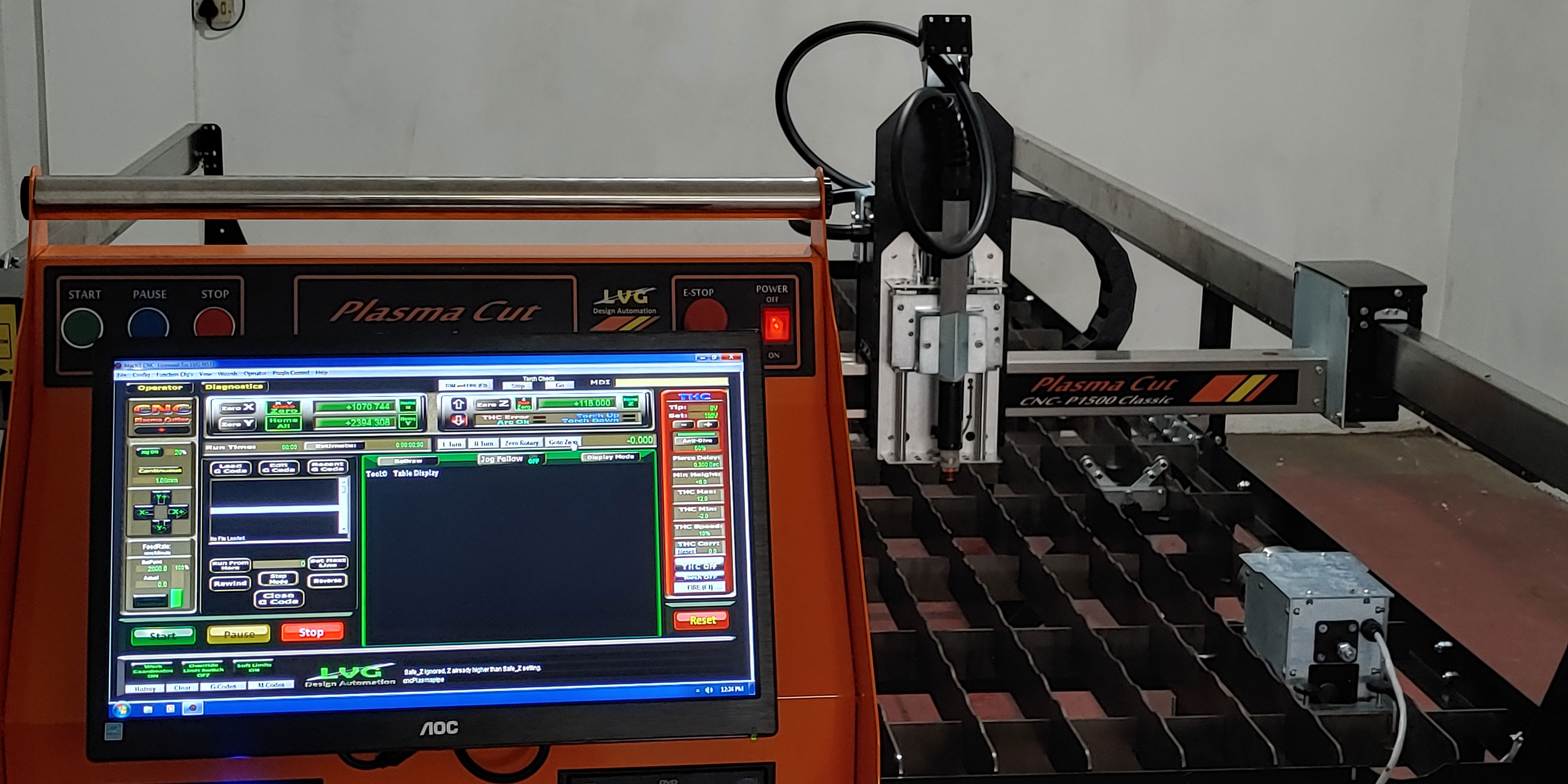

  • Mach3 CNC software (Custom user friendly interface)
  • Sheetcam CAM software
  • Free CAD software

☑ For Plasma Cutting

  • Plasma system: Your choice of Hypertherm or UNIarc (see pricing below)
  • On-screen Torch Height Controller for Mach3
  • Dry slats for plasma cutting

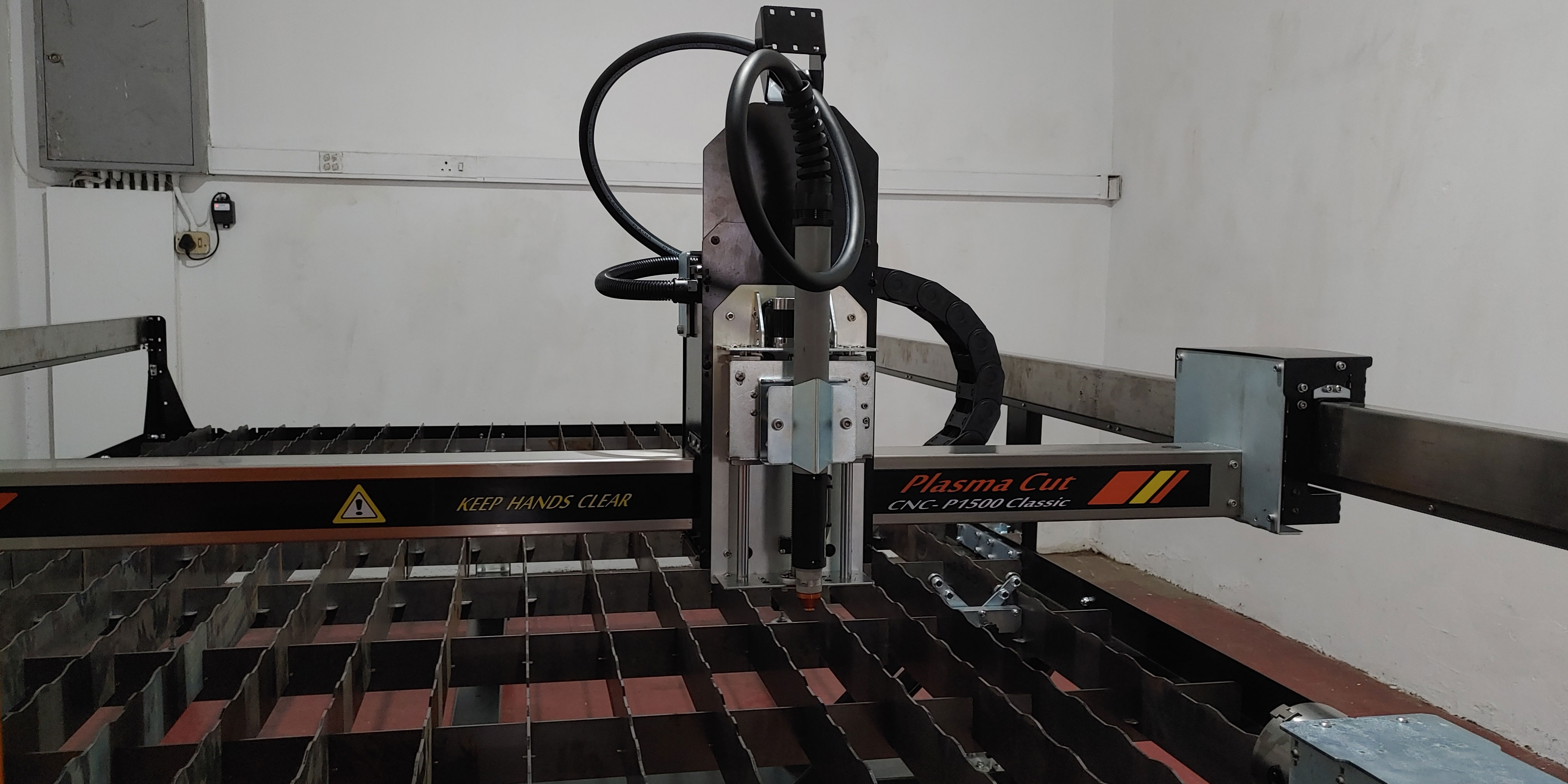

  • Floating torch head with Magnetic break-away

Optional Extras

☒ Not included in the price

  • Rotary attachment for pipe cutting : Maximum pipe diameter 120mm, length depends on table size. Price: R9500
  • Air Compressor - 150 liter | 8 bar | 2.2kW/230VAC | Belt driven
    Price : R8500
  • Plasma system: Hypertherm Powermax45 XP (45amp, Single Phase or Three Phase)
    Price: R59 000
  • Plasma system: UNIarc CUT451 PFC (45amp, Single Phase)
    Price: R22 000
  • The plasma systems above, can pierce up to 12mm mild steel, edge start 16mm
  • Plasma system: UNIarc CUT803 (80amp, Three Phase) 20m pierce
    Price: R35 000
