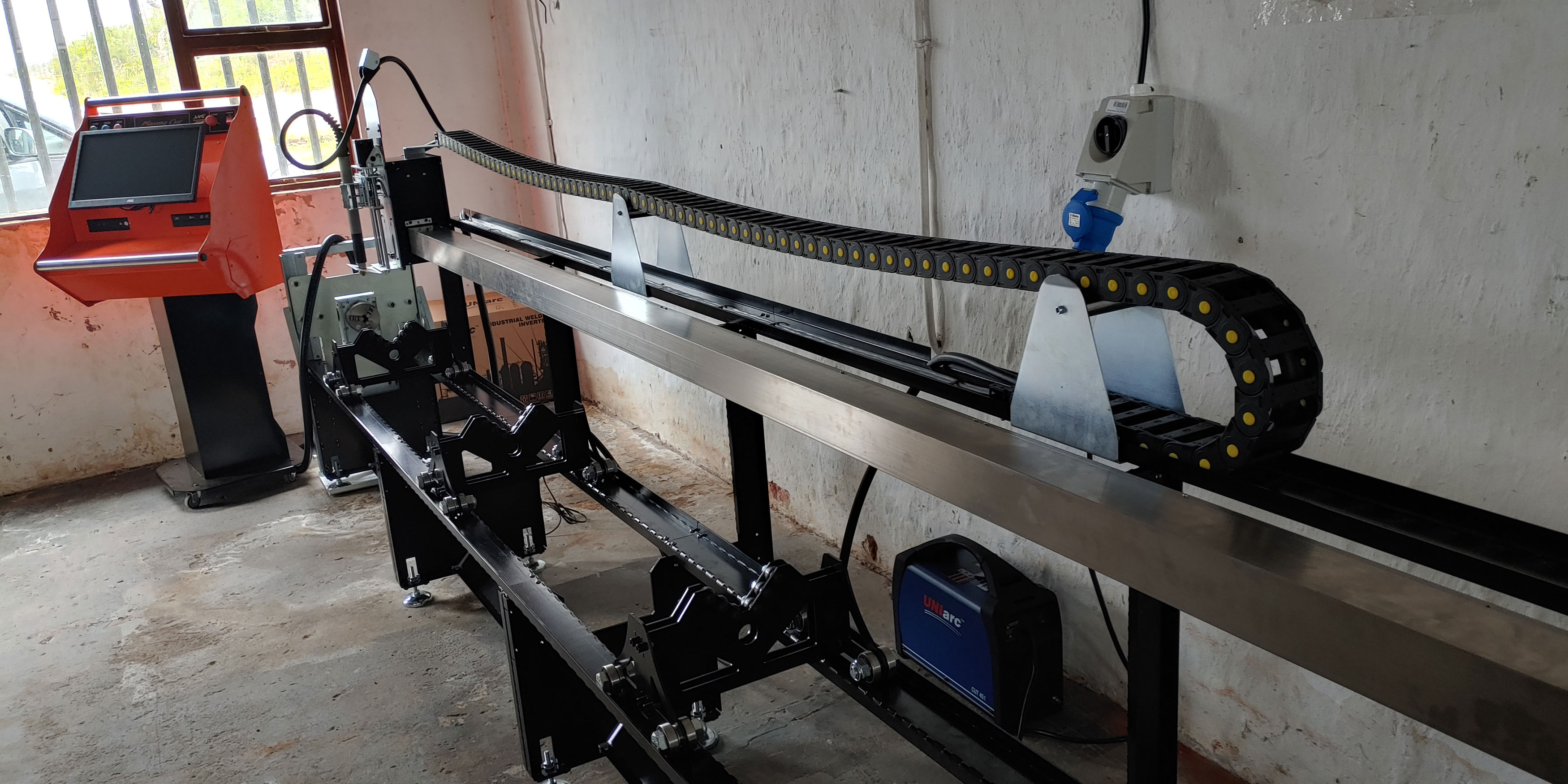

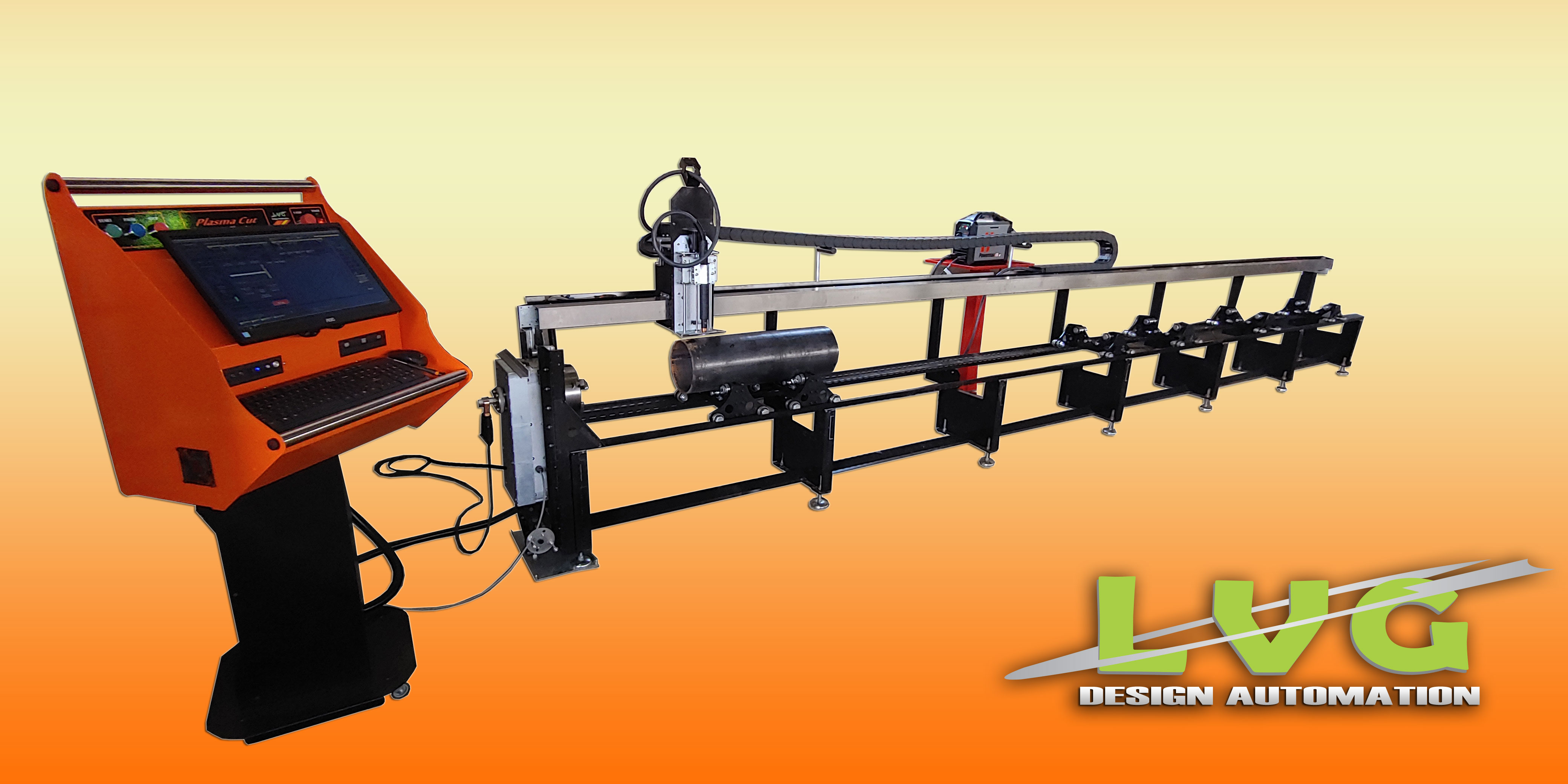

T6000 CNC Plasma Pipe Cutter
Custom sizes on request

Complete Machine, excluding Plasma cutter!

  • Prices subject to change without notice.
  • Important! Plasma Cutter options listed below
  • Prices as is, no VAT charges
  • Please ensure that the air line has a sufficient water trap installed
  • A 50A circuit breaker is recommended for plasma cutting
  • 5 week manufacture time with a 60% deposit

Price R 153 000

Included in the Price

☑ The Pipe Cutter

  • A axis with 200mm Chuck (Maximum pipe outer diameter 210mm)

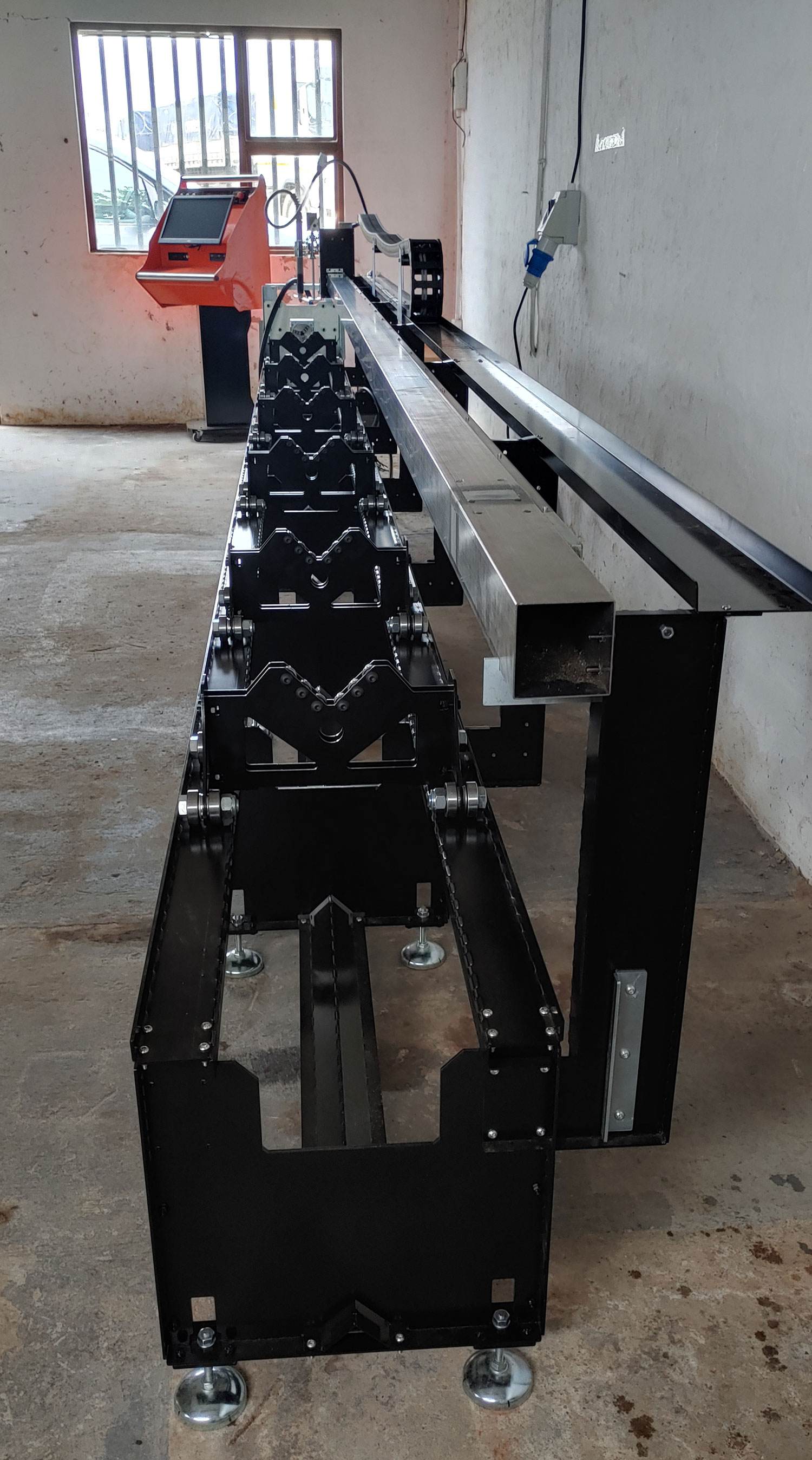

  • 6 Pipe Guides, made from mild steel and bearings to move along the rail

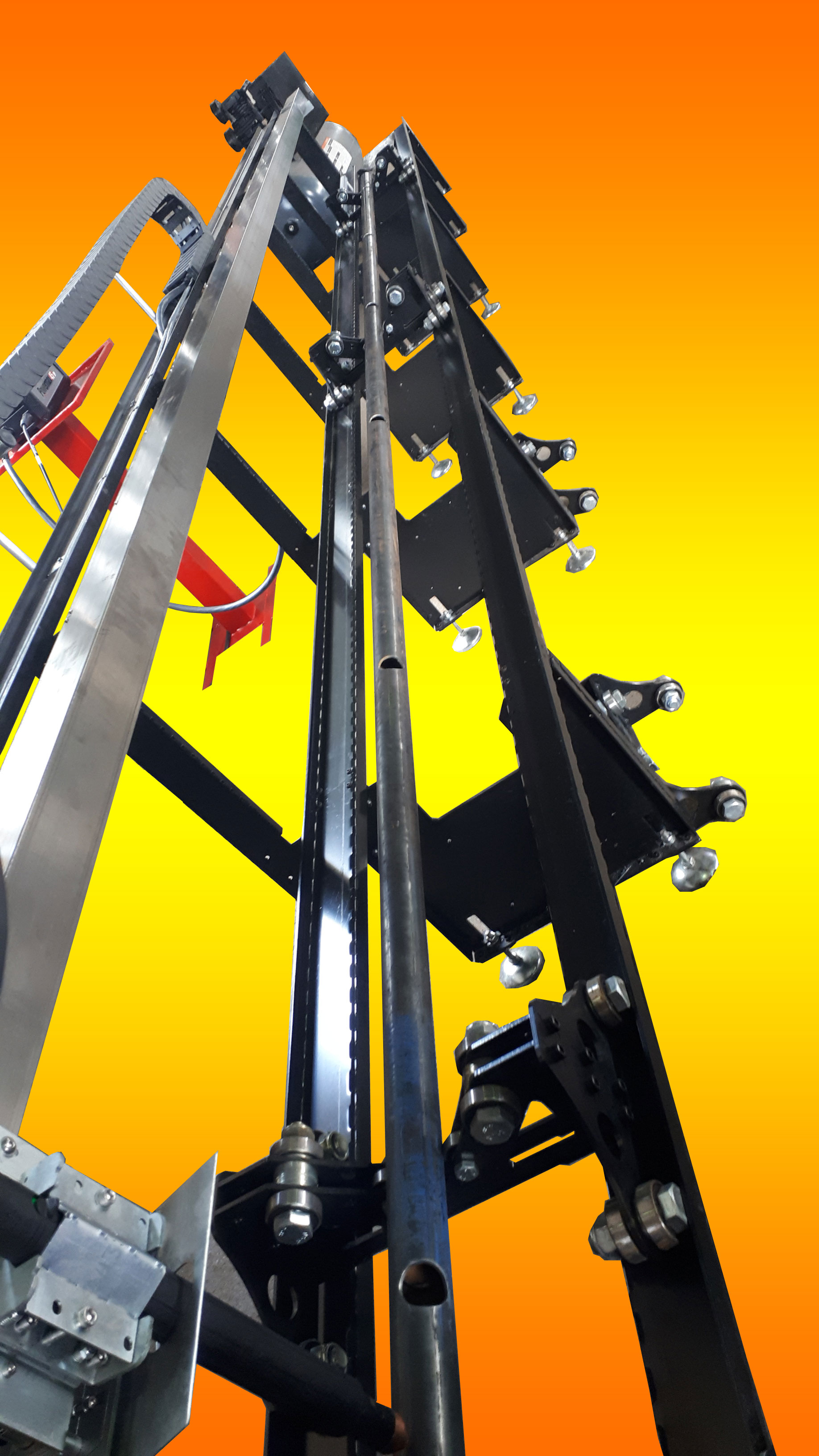

  • Strong 6 meter long construction made from mild steel and powder coated
  • All other sections are zink plated, with a stainless steel gantry
  • Parts are laser cut, bent and made in Port Elizabeth
  • Complete assembly by bolts and nuts no welding
  • Rack and pinion X movement at +-0.05mm increments
  • Lead screw Z axis with movement from 0 to 130mm
  • XZ steppers motors NEMA23 torque 25kg/cm
  • X max rapid speed of 8000mm/minute
  • Stepper motor driver included for XZA
  • Limits on all axis
  • Switch mode power supply 36V 11amp
  • Motor cables and limit switches included

☑ Computer

  • Computer with 18.5inch LED Screen
  • Front panel USB, Intel Dual Core CPU, with RAM and storage
  • Wireless mouse & keyboard
  • Metal shield enclosure with movable stand and external START, PAUSE, STOP and Estop

☑ Software

  • Windows 7 32bit
  • Mach3 CNC software (Custom user friendly interface)
  • Sheetcam CAM software
  • Free CAD software
  • Free Tubemiter Software

☑ For Plasma Cutting

  • Plasma system: Your choice of Hypertherm or UNIarc (see pricing below)
  • On-screen Torch Height Controller for Mach3
  • Dry slats for plasma cutting
  • Floating torch head with Magnetic break-away

Optional Extras

☒ Not included in the price

  • Air Compressor - 150 liter | 8 bar | 2.2kW/230VAC | Belt driven
    Price : R8500
  • Plasma system: Hypertherm Powermax45 XP (45amp, Single Phase or Three Phase)
    Price: R59 000
  • Plasma system: UNIarc CUT451 PFC (45amp, Single Phase)
    Price: R22 000
  • The plasma systems above, can pierce up to 12mm mild steel, egde start 16mm
  • Plasma system: UNIarc CUT803 (80amp, Three Phase) 20m pierce
    Price: R35 000
  • Extra V-Block pipe guides R1450 : 6 included
